GD02002

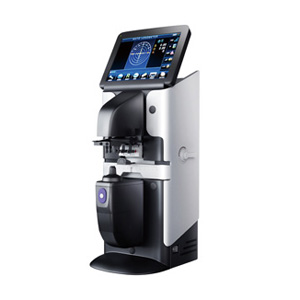

Auto Lensmeter
Model No.: JD-2600B
Features:

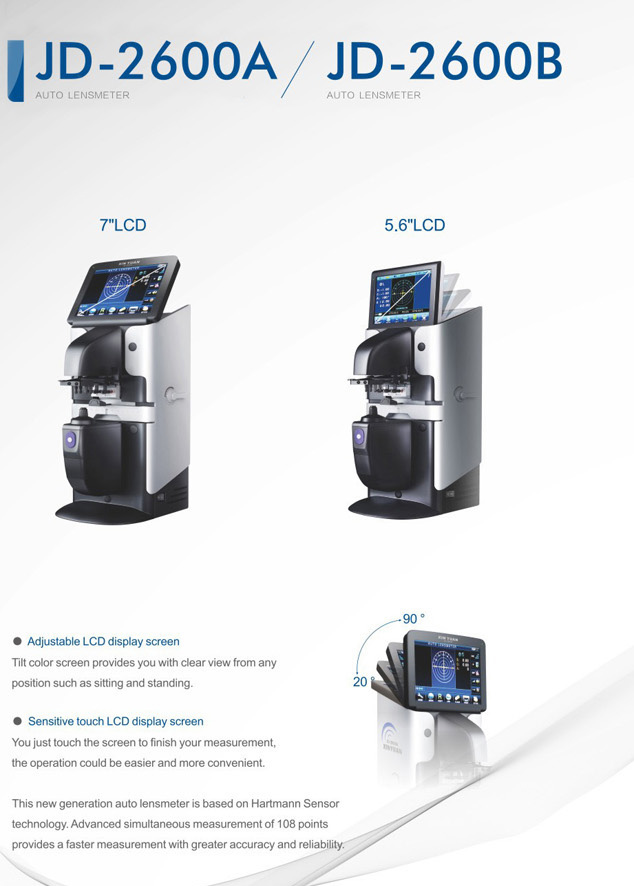

1. Adjustable LCD Display Screen: Tilt color screen provides you with clear view from any position such as sitting and standing;
2. Sensitive touch LCD display Screen: You just touch the screen to finish measurement, the operation could be easier an d more convenient.
3. Hartmann Sensor technology: The new generation auto lensmeter is based on Hartmann Sensor technology. Advanced simultaneous measurement of 108 points provides a faster measurement with greater accuracy and reliability.

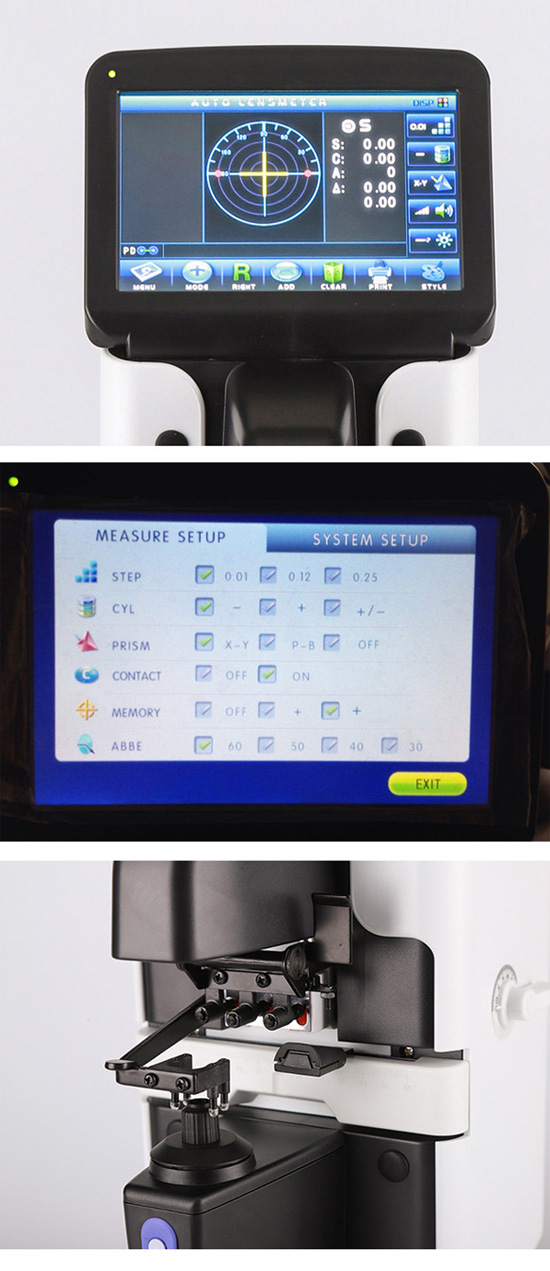

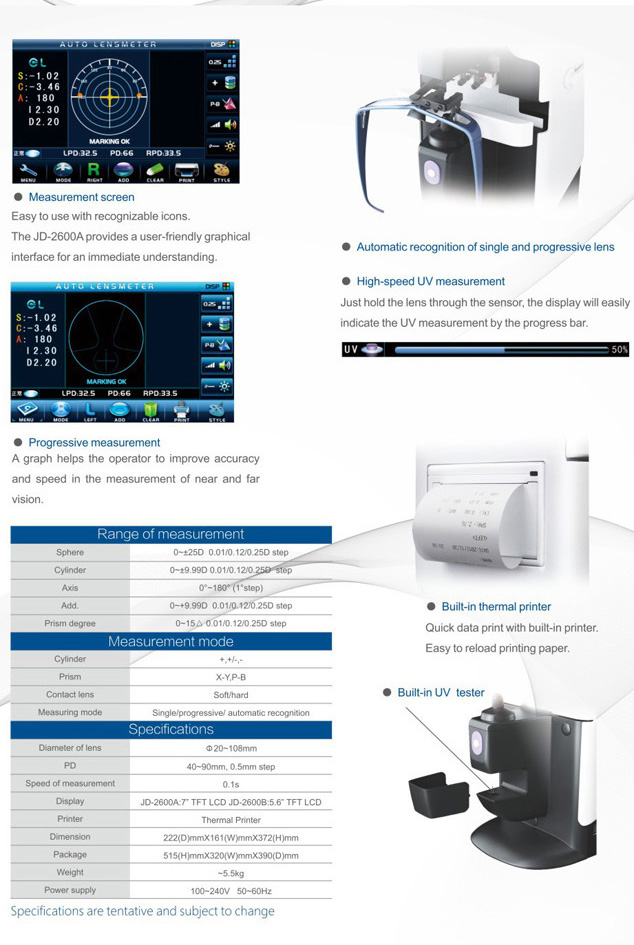

4. Measurement Screen: Easy to use with recognizable icons. The JD-2600B provides a user-friendly Graphical interface for an immediate Understanding.
5. Progressive measurement: A graph helps the operator to improve Accuary and speed in the measurement Of near and far vision
6. Built-in Thermal Printer: Quick data print with built-in printer. Easy to reload printing paper.

Specifications:
|
Range of measurement | |
|
Sphere |
0~ – 25D, 0.01/0.12/0.25D step; |
|
Cylinder |
0~ -9.99 D 0.01/0.12/0.25D step. |
|
Axis |
0-180 ° (1 ° step) |
|
Add. |
0-9.99 D 0.01/0.12/0.25D step. |
|
Prism degree |
0-15 D 0.01/0.12/0.25D step. |
|
Measurement mode | |
|
Cylinder |
, /-, – |
|
Prism |
X-Y, P-B |
|
Contact Lens |
soft/hard; |
|
Measuring mode |
Single/progressive/automatic recognition |
|
Specifications | |
|
Diameter of lens |
20-108mm; |
|
PD |
40-90mm, 0.5mm step; |
|
Speed of measurement |
0.1s |
|
Display |
5.6” TFT LCD; |
|
Printer |
Thermal Printer |
|
Weight |
5.5kg |
|
Power supply |
100-240V, 50-60HZ |
