GD01005

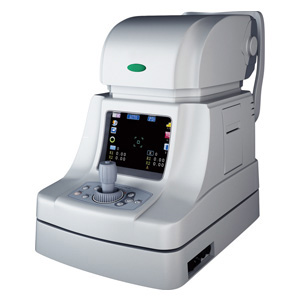

Auto Refractometer Keratometer (Auto Ref/Keratometer, Auto Kerato-Refractometer)
Model No.: FA-6100K

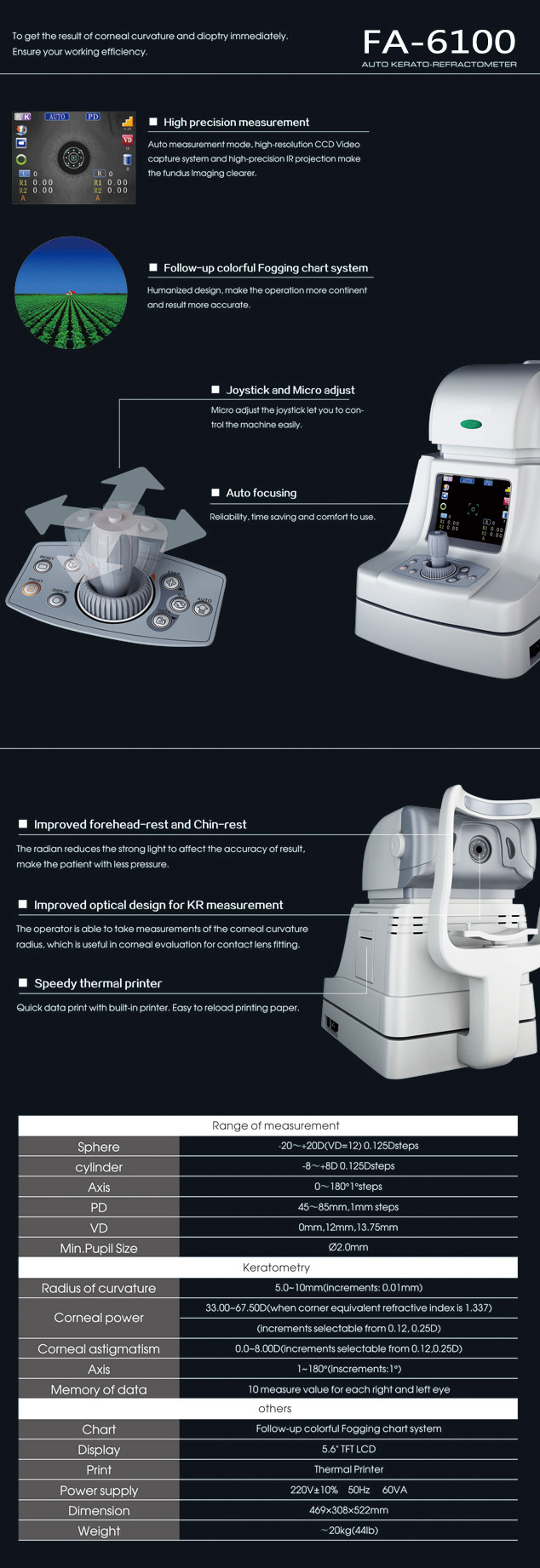

Auto Refractometer
Model No.: FA-6100
Features:
1.Display screen: The CRT Monitor make the measurement results and setting image display on an easy-to-view screen.
2.AUTO PD measurement: The PD will be automatically calculated after measurement.
3.Easy to operate, one-hand control: All operations, including UPDown, RightLeft, ForwardBackward and Start can be easily controlled with one hand through the control stick.
4.Faster and more accurate measurement.
5.More broad measurement range of Min.pupil size toφ2.0mm.
6.Auto I manual focus function.
7.Convenient user menu setting.
8.Keratometry and refractometry mode select.
Specifications:
|
Auto Refractometer | |
|
Vertex distance |
0mm, 12mm,13.75mm |
|
Spherical |
-20 - +20D (VD=12) 0.125 Steps |
|
Cylinder |
-8 - +8D 0.125 steps |
|
Axis |
0-180° 1D step |
|
Cylinder form |
-, +, + |
|
Pupil distance |
45-88mm, 1mm step |
|
Min. pupil size |
2.0mm |
|
Keratometer | |
|
Radius of curvature |
5.0-10mm (increment:0.01mm) |
|
Corneal Power |
33.75-67.50D (when corner equivalent refractive index is 1.337) |
|
Increment select-able from 0.12,0.25D | |
|
Corneal astigmatism |
0.00-8.00D (Increment select-able from 0.12,0.25D) |
|
Axis |
1-180°D (increment :1° D) |
|
Corneal diameter |
2.0 -14mm (increment:0.1mm) |
|
Memory of data |
10 measure value for each right and left eye |
|
Others | |
|
Chart |
Auto fog |
|
Display |
5.6” color LCD |
|
Print |
Thermal printer |
|
Power supply |
100 – 240V 50/60HZ |
|
Dimension |
280mm (w) x 540mm (L) x 510 mm (H) |
|
Weight |
20kg |
