GD07007

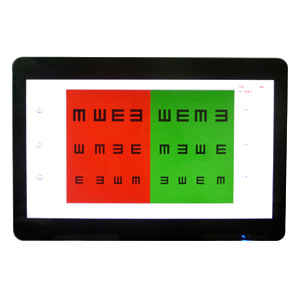

Vision Chart
Model No.: ZN-215 AP
Features:
• Elegant shape, ultra-thin and narrow edge
• 21.5 inch high-definition LCD monitor, suitable for various optometry environments
• Red and green separation testing function, suitable for scan and bluetooth connection
• Unique backlight adjustment function, supporting various indoor and outdoor light environments
• Accurately adjust the size of the chart according to the optometry distance
Technical Specification:
|
Display |
21.5" LCD (color) High resolution screen |
|
Brightness |
80-320cd/m2 |
|
Chart versions |

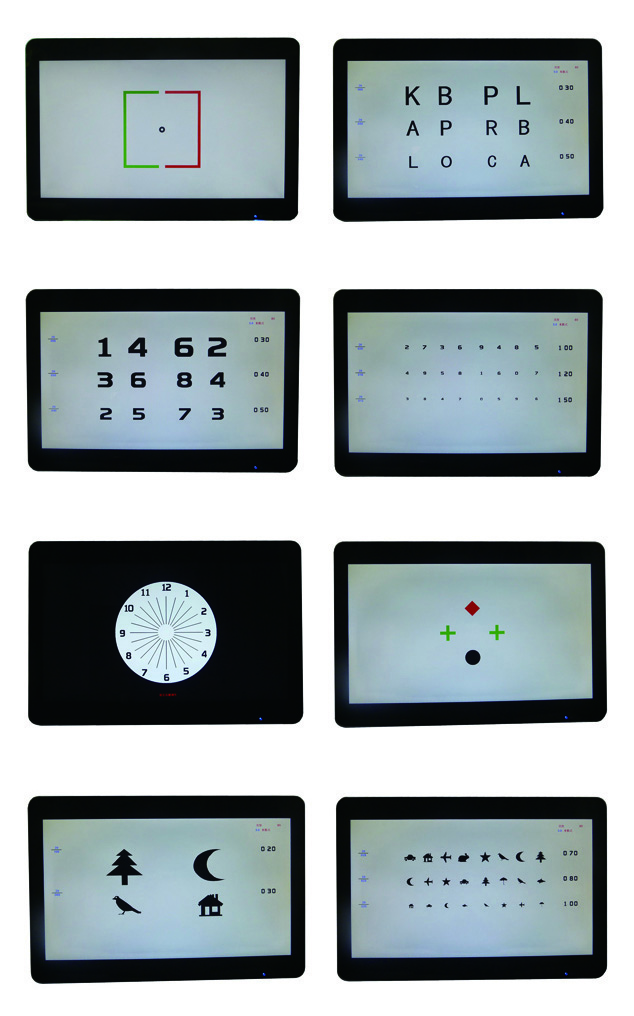

E, C, ABC, 123, child, special version charts |
|
Working distance |
1-6m, (0.1m/step) |
|
Remote control |
Yes |
|
Power supply |
AC100V-240V, 50HZ/60HZ |
|
Power consumption |
50W |
|
Dimension |
537 x 330 x 55mm |
|
Package Dimension |
590 x 435 x 110mm |
|
Net Weight |
6.0 kg |
|
Gross Weight |
7.0 kg |
