GD0601006

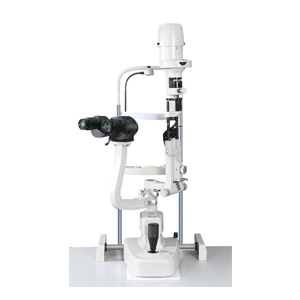

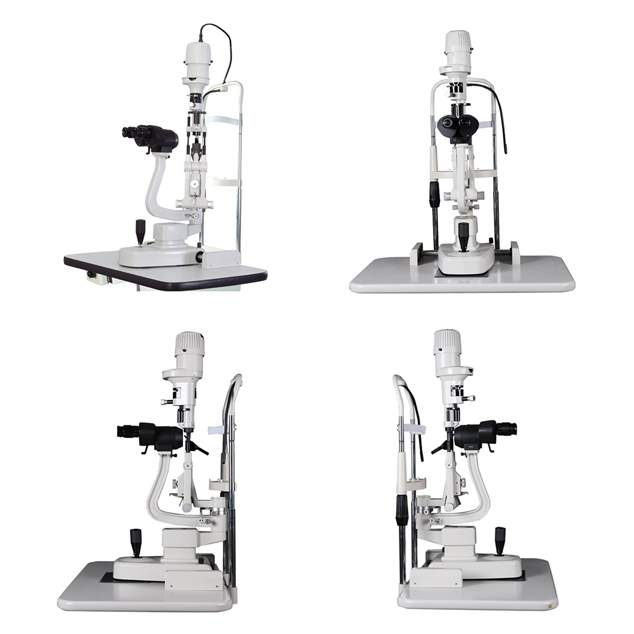

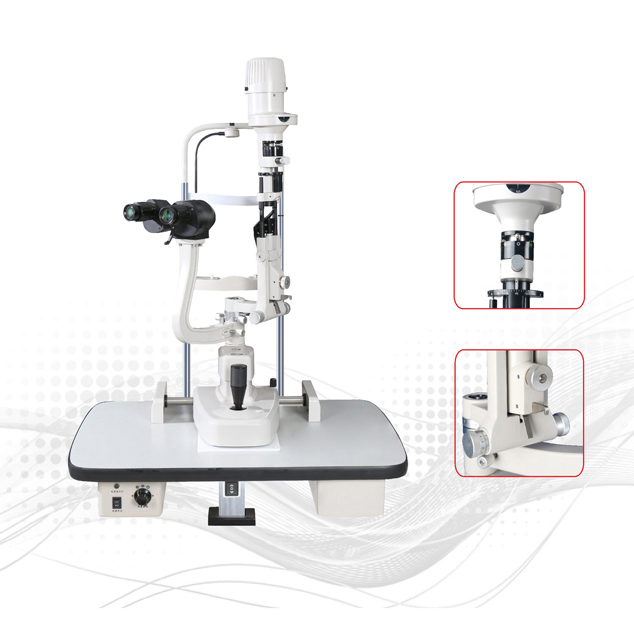

Slit Lamp
Model No.: SLM-1ER
Features:
Simple but not crude, all functions, flexible operate, comfortable check

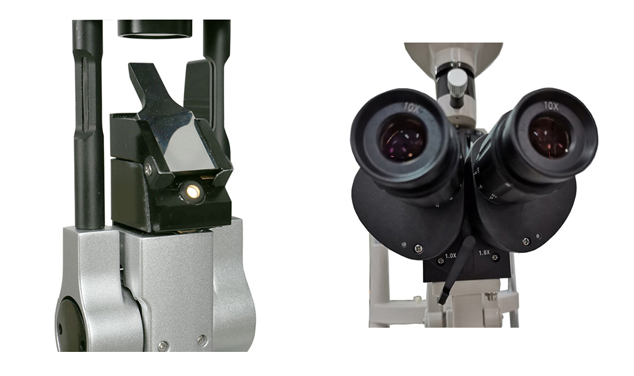

• Has 10X and 16X two types eyepiece, with deflector rod, has 10X, 16X and 25.6X three magnification
• Maximum 14mm spot checks greater extent of disease
• 21.5mm high eye point more comfortable to check
• Built-in five filters(Unfiltered, heat absorption, grey, cobalt blue, red free), freely selected according to requirement
• International standard accessories interface, you can install any model of anterior segment laser adapter and Goldman tenonometer
Specifications
|
Model |
SLM-1ER |
|
Microscope Type |
Converging |
|
Magnifications change way |
Defilector Rod |
|
Eyepiece Magnification |
10X 16X |
|
Total Magnifications |
10X 16X 25X |
|
Diopter Adjustment |
-6D ~ +6D |
|
Illumination |
Three Steps (Stepless Optional) |
|
Slit Width |
0-14mm Continuous |
|
Slit Height |
1-14mm Continuous |
|
Slit Angle |
0°-180° Adjustable |
|
Slit Inclination Angle |
5° 10° 15° 20° |
|
Light Spot Diameter |
0.2mm,1mm,2mm,5mm,10mm,14mm |
|
Filter |
Heat Absorption;Grey;Redfree;Cobalt Blue |
|
Fixation |
Red LED |
|
Electrical | |
|
Illumination Bulb |
German Osram Halogen Tungsten Lamp LED lamp(optional) |
|
Input Voltage |
110V/220V(±10%) |
|
Input Power |
60VA |
|
Diffuse Lens |
Yes |
|
Preset Lens |
Yes |
|
Laser Interface |
Optional |
|
Applanation Tonometer Interface |
Yes |
|
Base Movement |
X: 100mm ± 3 |
