Catalog
GD01006

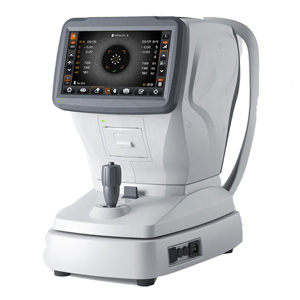

Auto Kerato-Refractometer (Auto Ref/Keratometer, Auto Refractometer Keratometer, Auto Refractor Keratometer)
Model No.: FA-8000K
Auto Refractometer
Model No.: FA-8000
Features:

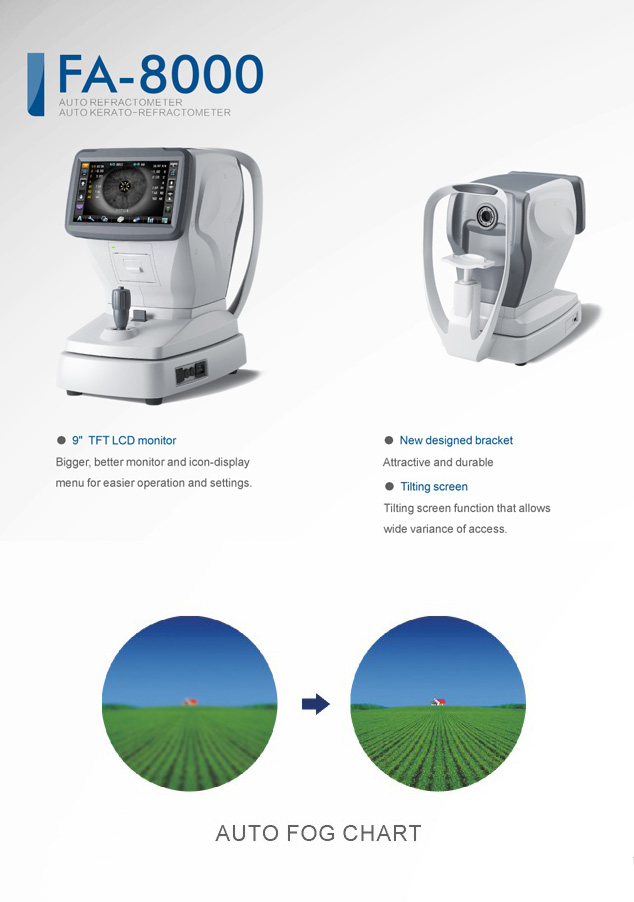

1. 9” TFT LCD monitor,Bigger, better monitor and icon-display menu for easier operation and settings.
2. Bigger better monitor, icon display, menu for easier operation and setting.
3. Motorized joystick: A Motorized joystick with auto-tracing mode is adopted, so operation is easier.
4. New designed bracket, Attractive and durable.

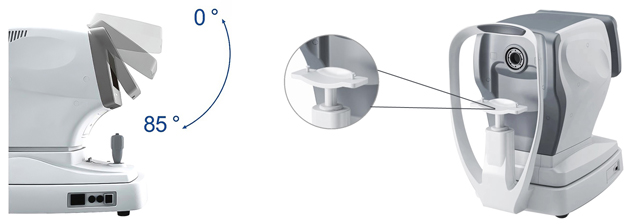

5. Tilting screen function that allows wide variance of access.
6. Auto focus function,Just move, it will automatically focus the eye and get the value.
7. Refractive measurement with hexagon prism,with high quality of hexagon prism and highly senstive CCD, it provides unmathced accuracy and reliability.
Specifications:
|
Refractometer | |
|
Vertex distance |
0mm, 12mm, 13.75mm |
|
Spherical |
-20 ~ 20D (VD=12) 0.12/0.25D Step |
|
Cylinder |
-8 ~ 8D 0.12/0.25D Step |
|
Axis |
0-180° 1° step |
|
Cylinder form |
-, +, ± |
|
Pupil distance |
45-88mm, 1mm step |
|
Min. pupil size |
2.0mm |
|
Keratometry | |
|
Radius of curvature |
5.0-10mm (increment:0.01mm) |
|
Corneal Power |
33.75-67.50D (when corner equivalent refractive index is 1.337) |
|
Increment selectable from 0.12, 0.25m-1 | |
|
Corneal astigmatism |
0.00-8.00 m-1 (Increment selectable from 0.12, 0.25m-1) |
|
Axis |
1~180° (increment: 1°) |
|
Corneal diameter |
2.0 -14.0mm (increment:0.1mm) |
|
Others | |
|
Chart |
Follow-up Colorful Fogging Chart System |
|
Memory of data |
10 measure value for each right and left eye |
|
Display |
9” LCD/TFT |
|
Print |
Thermal printer |
|
Power supply |
100 – 240V 50/60HZ |
|
Dimension |
483mm*268mm*452mm |
|
Weight |
16kg |
