GD02007

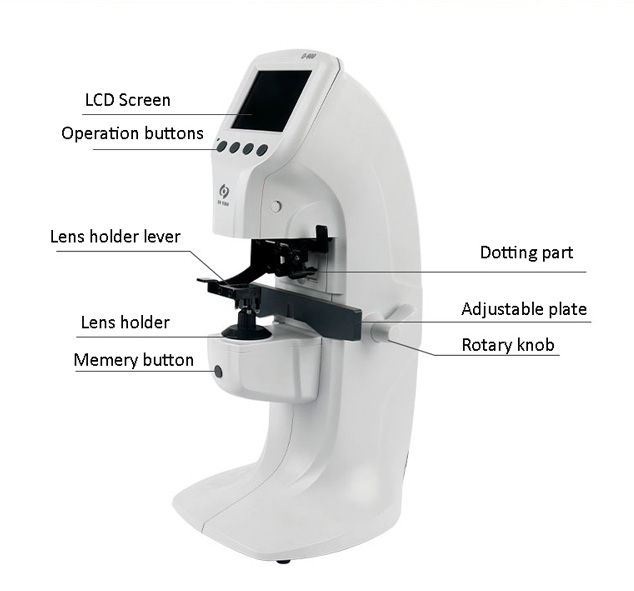

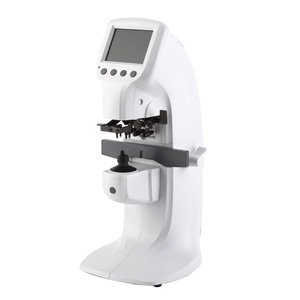

Auto Lensmeter
Model No.: D-900
Features:
1. Colorful Touch Screen With Printer And Pd,
2. Built-in UV Part Automatic Recognition of Single And Progressive Lens

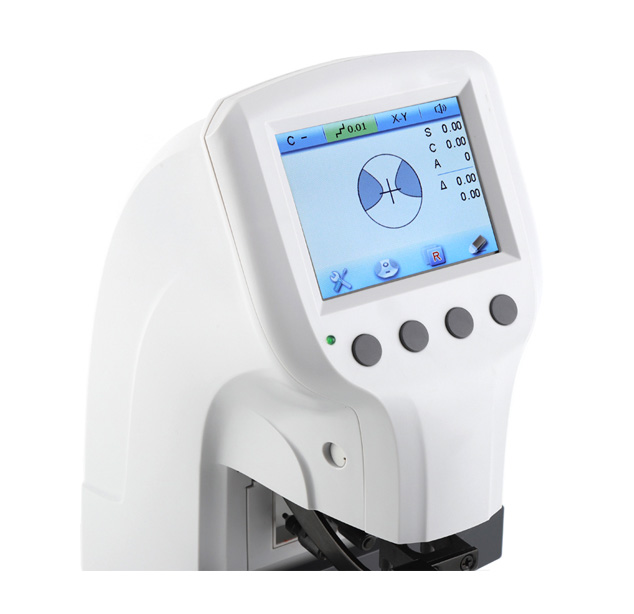

3. The display unit utilizes a full-graphic LCD, displaying measured values of right-eye and left-eye lenses at one time and graphically showing the alignment condition in the shape of a target.
Specifications:
|
Range of measurement | |
|
Sphere |
0~±25m |
|
Cylinder |
0~±9.99m |
|
Axis |
0°~180°(1°step) |
|
Addition |
0~±9. 99m-1 |
|
Prism |
0~15cm/m |
|
Measurement mode | |
|
Cylinder |
+,+/-,- |
|
Prism |
X-Y,P-B |
|
Prism degree |
0.01cm/m /0. 12cm/m /0. 25cm/m |
|
Diopter |
0.01m-1 /0.12m-1 10. 25m-1 (D) |
|
Contact lens |
Soft/hard lens |
|
Specifications | |
|
Diameter of lens |
ø12~ø90mm |
|
PD |
not available |
|
Weight |
2.9kg |
|
Power supply |
100~240V 50/60HZ 15VA |
|
Display |
3.5"LCD |
|
Printer |
external printer optional |
|

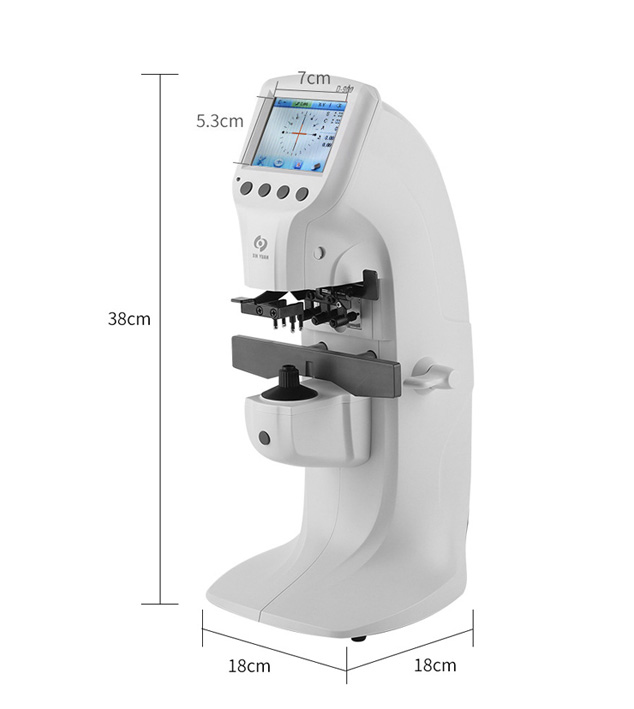

Size |
185mm(W)x386mm(H)x166mm(D) |
|
Package |
420mm(W)x250mm(H)x200mm(D) |
