GD1303005

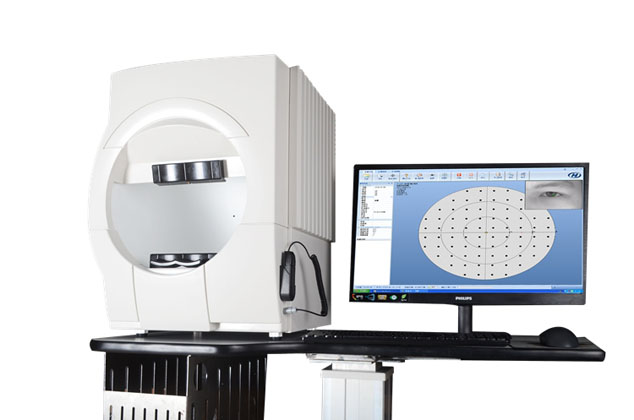

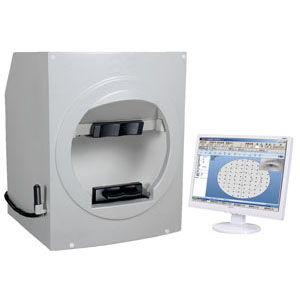

Projection Perimeter
Model No.: APS-T90



Features
1.International standards
 •Color perimetry: a more sensitive detection of early visual filed defects
2.Accurate, fast Visual Testing
 •Original interlligent testing strategies(IDT):3 minutes to complete a full inspection threshold
 •Kinetic perimetry
3.Corprehensive and versatile single analysis and reporting reliability: Accurate interpretation of perimetry results
 •Perimeter index
 •Dedicated projection perimetry software system





Specifications:

Model

APS-T90

Appearance

Split type

Stimulating way

Optical projection

Projection surface

aspheric projection arc

Detection method

Static perimetry,Dynamic Perimetry

Detection scope

0-90°

Brightness Level

0-51db

Testing Distance

300mm

Visual Target Color

Red, Blue, White

Visual Target Brightness

0asb-10000asb

Background Light

White(31.5asb),yellow(315asb )

Vision Target Interval time, keeping time

Patients adaptive,standard,slow,custom

Pupil Size Measurement

Auto

Head Movement Way

AEC Eye position monitoring and automatic correction system

Brightness Measurement

Brightness Auto Measurement and correction

Visual Target Size             (Goldmann standard)

Grade Grade Grade Grade Grade

Detection strategy

Full-threshold,fast threshold,custom,Two notation,three notation,quantify defects,Intelligent dynamic,fast intelligent dynamic

Threshold policy

age-related, threshold-related, single strength

Static Perimetry

Threshold        Test Mode

Center 10-2,Center 24-2,Center 30-2,Center60-4,Nasal step, macula

Screening,   special test mode

Center 40,Center 64,Center 76,Center80,Center Armaly, Peripheral 60,Nasal step,Armaly Full Field,Full Field 81,Full Field 120,Full Field1 35,Full Field246,upper36, upper64, Esterman monocular, Estermanbinocular

Dynamic  Perimetry

Dynamic program

manual procedures,standard procedures (Standard 45, standard 30,a high-resolution 15),                    Static point map,dark spot map,blind spot map,custom scan,custom dynamic program

Stimulation parameters

adjustable (Speed 1-9 / S,visual target size,color, intensity, test ranges,etc.)

Fixation monitoring

Dynamic real-time video monitoring, physiological blind spot monitoring

Eye tracking curve,eye position offset alarm

Analysis Software

Reliability analysis,single vision analysis, triple report analyzes,Overview vision analysis,GHT glaucoma semi vision analysis,GPA glaucoma developing analysis
