GD1203005

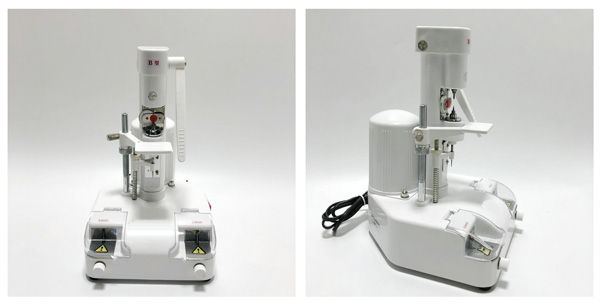

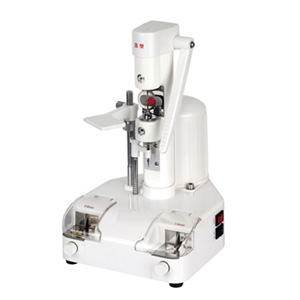

Drilling & Notching Machine
Model No.: LY-988B



Features:
This machine is multi-functional special-purpose equipment for perforating  and grooving of rimless frame.
Detailed Product Description:
1, LY-988AT high-quality products, speed adjustment, made of stainless steel parts, aluminium pipe, with light or handrail, big power motor.
2, It is most applicable to CR lens and PC lens to perforate and groove.
3, Opposing taper drill bits system allow hole to be drilled from sides simultaneously for precision placement and avoids chipping and breaking of all lenses, especially those made of glass.
4, The adjustable groove-cutting device to get accurate depth of groove cutting.
5, Diameter of hole: 0.8mm-2.8mm, widthe of groove: 0.8-1.0mm.









 Specifications:

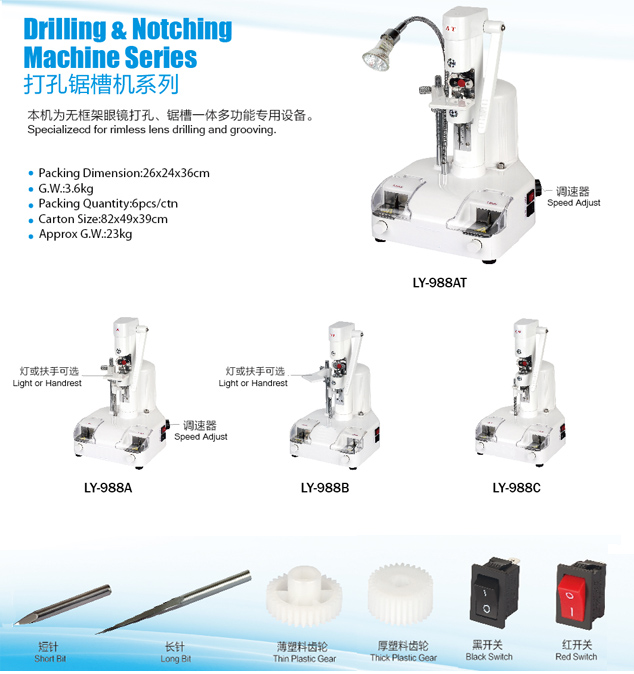

Lens Driller

LY-988A

LY-988B

LY-988C

LY-988AT

Electric Voltage

220V/50Hz  or  110V/60Hz

Power

25W

Packing Dimension

26X24X36cm

G.W.

3.6kg

Packing Quantity

6pcs/ctn

Carton Size

82x49x39cm

Approx G.W.

23kg
