GD05010

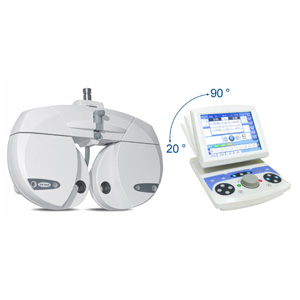

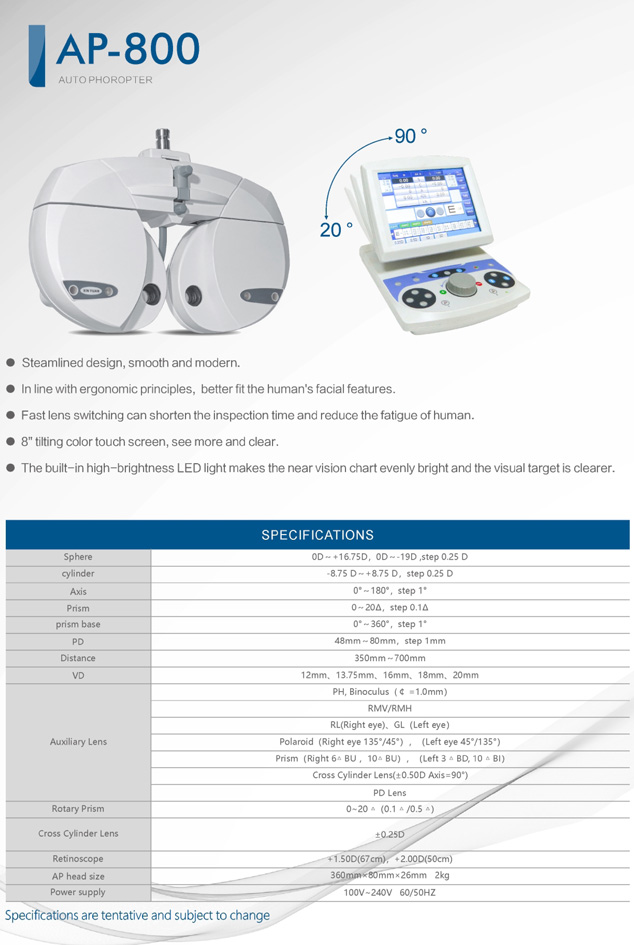

Auto Phoropter
Model No.: AP-800
Features:
• Steamlined design, smooth and modern.
• In line with ergonomic principles, better fit the human's facial features.
• Fast lens switching can shorten the inspection time and reduce the fatigue of human.
• 8" tlting color touch screen, see more and clear.
• The bult-in high-brightness LED light makes the near vision chart evenly bright and the visual target is clearer.
Specifications:
|
Sphere |
0D~+16.75D, 0D~-19D step 0.25D |
|
Cylinder |
-8.75D~+8.75D, step 0.25D |
|
Axis |
0°~180°, step 1° |
|
Prism |
0~20Δ, step 0.1Δ |
|
Prism base |
0°~360°, step 1° |
|
PD |
48mm~ 80mm, step 1mm |
|
Distance |
350mm~700mm |
|
VD |
12mm, 13.75mm, 16mm, 18mm, 20mm |
|
Auxiliary Lens |
PH, Binoculus (₵ =1.0mm) |
|
RMV/RMH | |
|
RL(Righteye), GL(Lefteye) | |
|
Polaroid (Right eye 135°/45°), (Left eye 45°/135°) | |
|
Pism (Right 6Δ BU, 10Δ BU), (Left3Δ BD, 10Δ BI) | |
|
Cross cylinder Lens(±50D Axis=90°) | |
|
PD Lens | |
|
Rotary Prism |
0~20Δ (0.1Δ/0.5Δ) |
|
Cross Cylinder Lens |
+0.25D |
|
Retinoscope |
+1.50D(67cm) +200(50cm) |
|
AP head size |
360mmx80mmx26mm 2kg |
|
Power supply |
Power supply: 100V~240V 60/50HZ |
