Catalog
GD02009

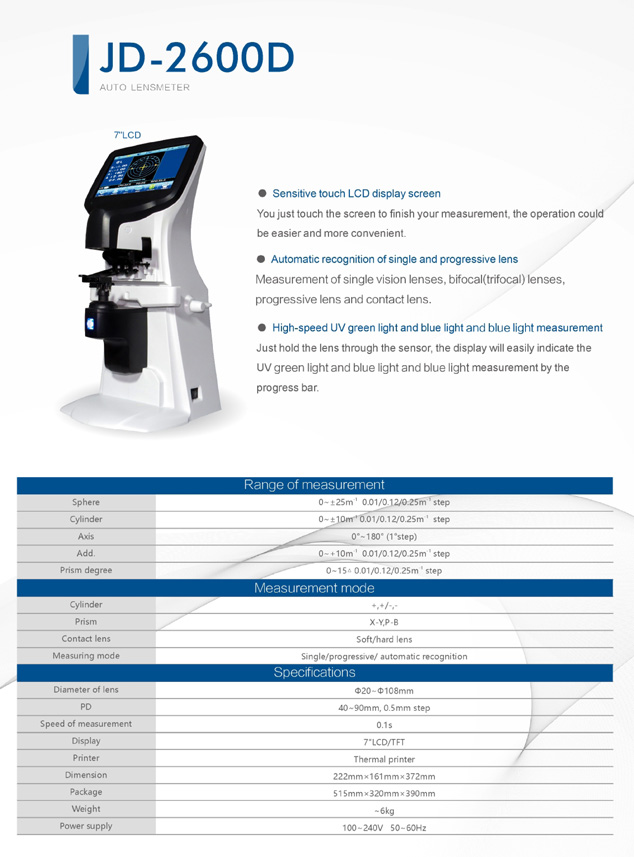

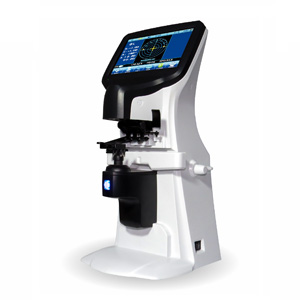

Auto Lensmeter
Model No.: JD-2600D
Features:
• Sensitive touch LCD display screen
You just touch the screen to finish your measurement, the operation could be easier and more convenient.
• Automatic recognition of single and progressive lens
Measurement of single vision lenses, bifocal(trifocal) lenses,progressive lens and contact lens.
• High-speed UV green light and blue light and blue light measurement
Just hold the lens through the sensor, the display will easily indicate the UV green light and blue light and blue light
measurement by the progress bar.
Specifications:
|
Range of measurement | |
|
Sphere |
0~ +25m-1 0.01/0.12/0.25m-1 step |
|
Cylinder |
0~±10m-1 0.01/0.12/0.25m-1 step |
|
Axis |
0°~180° (1°step) |
|
Add. |
0~+10m-1 0.01/0.12/0.25m-1 step |
|
Prism degree |
0~15Δ 0.01/0.12/0.25m-1 step |
|
Measurement mode | |
|
Cylinder |
+, +/-, – |
|
Prism |
X-Y, P-B |
|
Contact Lens |
soft/hard lens |
|
Measuring mode |
Single/progressive/automatic recognition |
|
Specifications | |
|
Diameter of lens |
φ20~φ108mm |
|
PD |
40~90mm, 0.5mm step |
|
Speed of measurement |
0.1s |
|
Display |
7"LCD/TFT |
|
Printer |
Thermal printer |
|
Dimension |
222mm x 161mm x 372mm |
|
Package |
515mm x 320mm x 390mm |
|
Weight |
~6kg |
|
Power supply |
100~ 240V 50~ 60Hz |
