GD01008

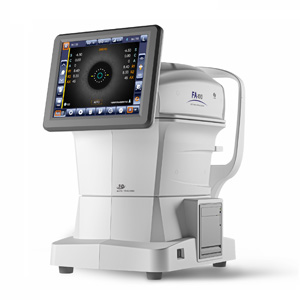

Auto Refractometer Keratometer (Auto Kerato-Refractometer, Auto Ref/Keratometer, Auto Refractor Keratometer)
Model No.: FA-100

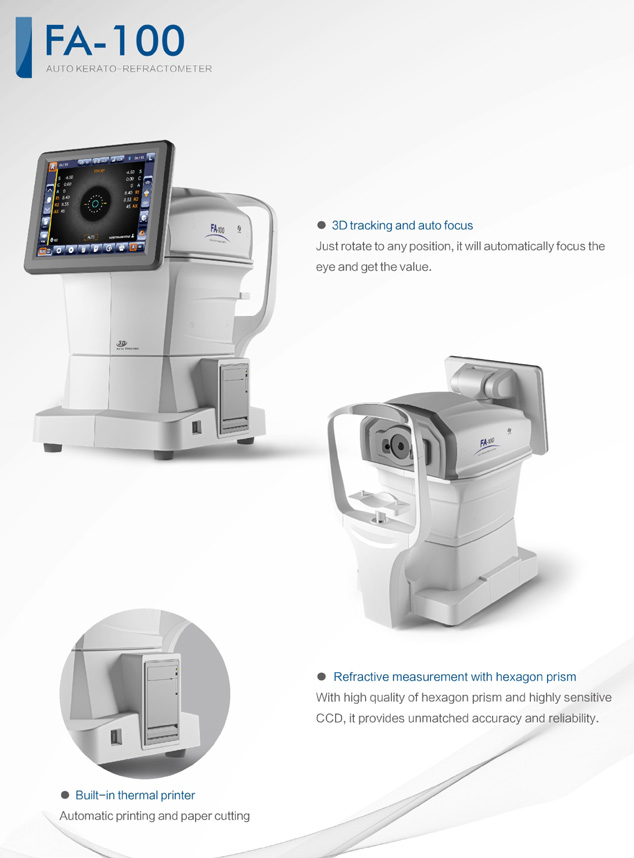

Features:
• 3D tracking and auto focus
  Just rotate to any position, it will automatically focus the eye and get the value.
• Refractive measurement with hexagon prism
  With high quality of hexagon prism and highly sensitive CCD, it provides unmatched accuracy and reliability.
• Built-in thermal printer
  Automatic printing and paper cutting
• 10.4" tilt and swivel monitor
  Since the screen can be continuously tilted and swiveled, it can be placed anywhere in an examination area.
  Flexible layout and space saving design contribute to improved productivity and efficiency.

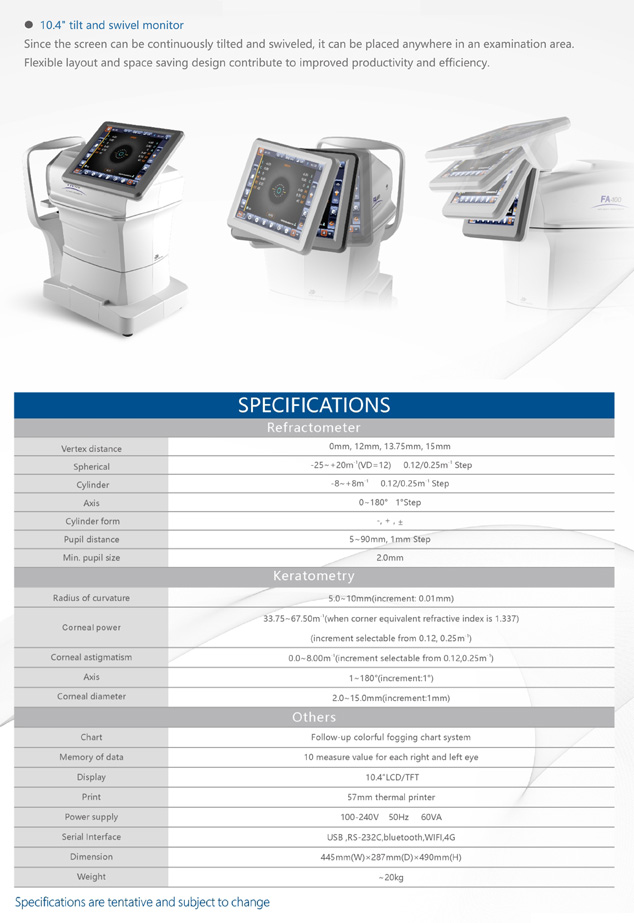

 Specifications:

Refractometer

Spherical

-25~ + 20m '(VD=12) 0.12/0.25ml Step

Cylinder

-8~+8m' 0.12/0.25m1 Step

Axis

0-180° 1° step

Pupil distance

5 ~ 90mm, 1mm Step

Vertex distance

0mm, 12mm, 13.75mm, 15mm

Cylinder form

-,+，土

Min. pupil size

2.0mm

Keratometry

Radius of curvature

5.0-10mm (increment:0.01mm)

Corneal Power

33.75 ~ 67.50m '(when corner equivalent refractive index is 1.337)

　

(increment selectable from 0.12, 0.25m )

Corneal astigmatism

0.0~ 8.00m '(increment selectable from 0.12,0.25m)

Axis

1~ 180°(increment:1°)

Corneal diameter

2.0~ 15.0mm(increment:1mm)

Others

Chart

Follow-up Colorful Fogging Chart System

Memory of data

10 measure value for each right and left eye

Display

10.4" LCD/TFT

Print

57mm thermal printer

Power supply

100-240V 50Hz 60VA

Serial Interface

USB ,RS-232C,bluetooth,WIFI,4G

Dimension

445mm(W) x287 mm(D)x 490mm(H)

Weight

~ 20kg
