GD0401063

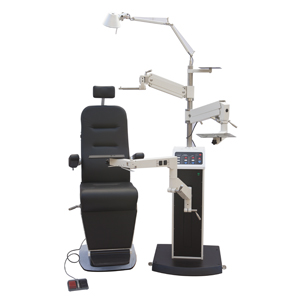

Ophthalmic Unit
Model No.: OT-700A

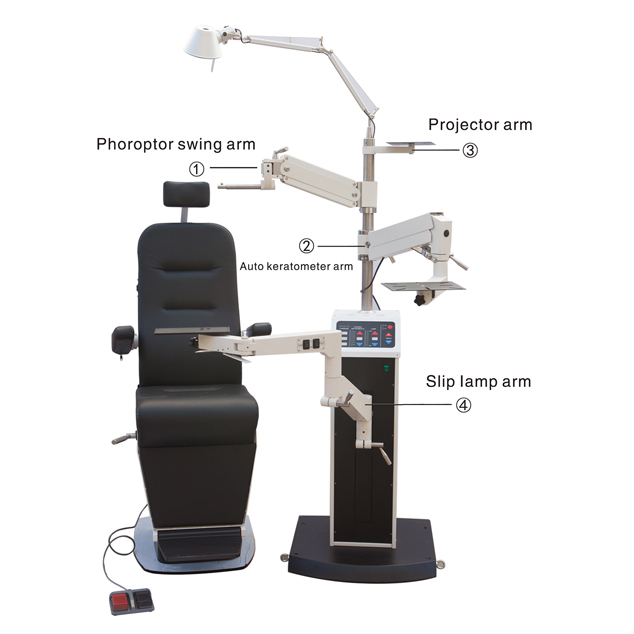

Mechanical Parameters:

Phoroptor swing arm

Swing angle (up and down)

±30°

Rotary arm

rotation angle 0°-300°

Up and down moving range

900mm~1500mm

Max load

30Kgs

Auto keratometer arm

Swing angle (up and down)

±40°

The first rotary arm rotates

At an Angle 360°

The second rotary arm rotates

At an Angle 0°- 300°

The tray rotary

360°

Up and down moving range

780mm~1380mm

Max load

30Kgs

Projector arm

Angle of rotation for rotary arm

360°

The tray rotary

360°

Up and down moving range

1030mm~1530mm

Max load

10Kgs

Slip lamp arm

Table size

350mm x 200mm x 25mm (Can be customized,

maximum size is 700mm x 400mm x 40mm)

Max load

50Kgs

Table movement range

Within a semicircle with a radius of 824mm

Height adjustment range

716mm ~1016mm

Table rotational angle

The first rotary arm rotates at an Angle0°- 180°

The second rotary arm rotates at an Angle0°- 360°

The third rotary arm rotates at an Angle0°- 180°

Table- board rotational angle

360°

Seat parameter

Liting range

568~ 708mm

Headrest adjusting range

250mm

Seat rotation angle

0°~ 270°

Footrest height from ground

Minimum 88mm

Backrest adjusting angle

80°-180°

Max. load

150Kgs

Installation Dimension

Figure size

1884mm x 1316mm x 1663mm

(No contain table top or lighting)

Weight

Weight:295kgs



Electrical Parameters:

Input voltage

100- 120V AC 50Hz/60Hz

200-240V AC 50Hz/60Hz

Output voltage

100-120V AC 50Hz/60Hz

200-240V AC 50Hz/60Hz

2.5V 3.5V 4.5V 5.5V 6.5V 7.5V 12V AC

Charging voltage

5V DC

Engine power

28V 1.5ADC

Light

5/16W 24V DC

Fuse

5A 130/250V AC

No load power

1W

Pressure test

2KV

Working mode

S1

Main wire

10A 120V/250V

Working temperature

- 10°C~ +40°C

Relative humidity

less than 90%
