Catalog
GD1219006

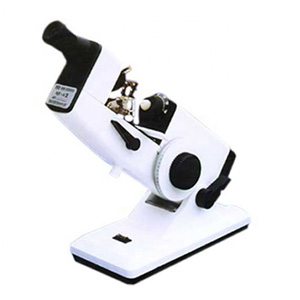

Manual Lensmeter
Model No.: NJC- 6
This manual lensmeter with superior quality optics equipped with eyepiece system which suit various eye-sight. Large ergonomic knobs are accurately marked with 0.125D step. There is a prism compensator in the lensmeter. Maximum measurement of lens in diameter is 100mm.
Features:
• ±25D measurement range
• With prism compensator inside
• Wide observation vision field
• Classic shape, Favorable price
• Both power: DC or AC
Parameters:
|
Eyepiece focusing |
-5D to +5D |
|
Vertex power |
0 to ±25D diopters |
|
Minium measurement value |
0.125D |
|
Maximum diameter of measured lenses |
100mm |
|
Shuttle lens measuring range |
18 |
|
Shuttle lens square value |
1 |
|
Cylinder lens axial range |
0-180° |
|
Prism compensator |
With prism compensator |
|
Power supply |
AC 220V/110V-6V DC3V |
